The Apple-1 Registry

Serial number on the back

The serial number on the back of the Apple-1 was most likely written by Steve Jobs. According to available information, a forensic analysis has not yet been performed for this Apple-1. However, for some other Apple-1s with a serial number on the back it has been confirmed that it is Steve Jobs' handwriting. More information.

Website(s)

Torzewski's website including picture.
Auction at Christie's Oct 2015 including pictures.

Description

White 6502 and disc capacitors.Said to be Byte Shop #01-0057.

History

Bought by Joe Torzweski August 1977.
Sold in private deal 2004
Auctioned at Christie's Oct 2015.

Auctions

Oct. 2015
(see History for more information)

Components

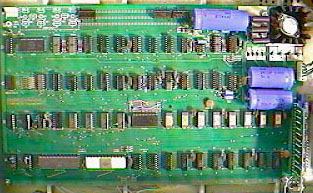

White ceramic MOS MCS 6502 CPU, plastic AMI S6820 PIA, plastic PIA, 8 KB mix of plastic and ceramic DRAM. Blue capacitors.

Equipment

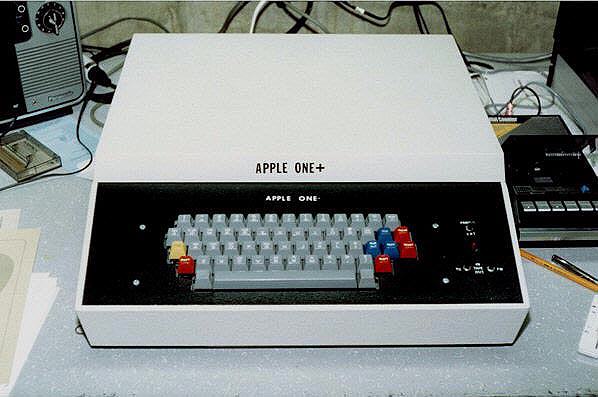

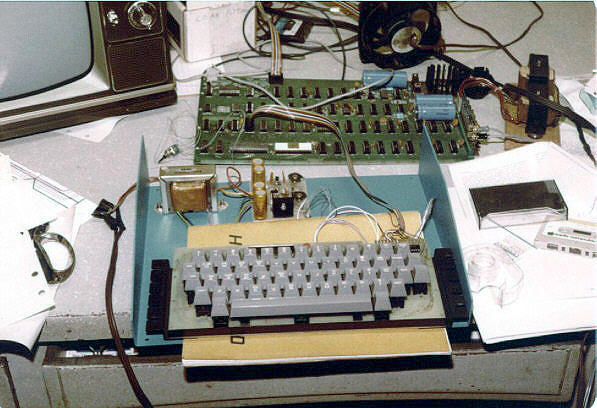

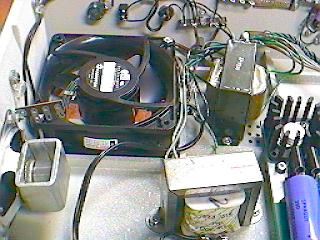

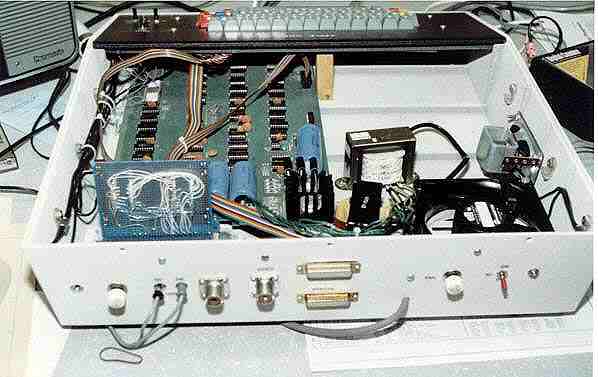

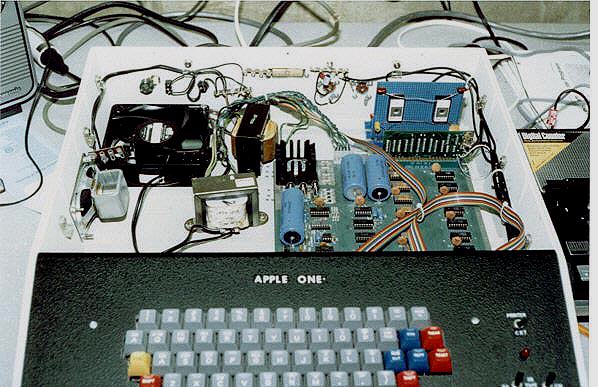

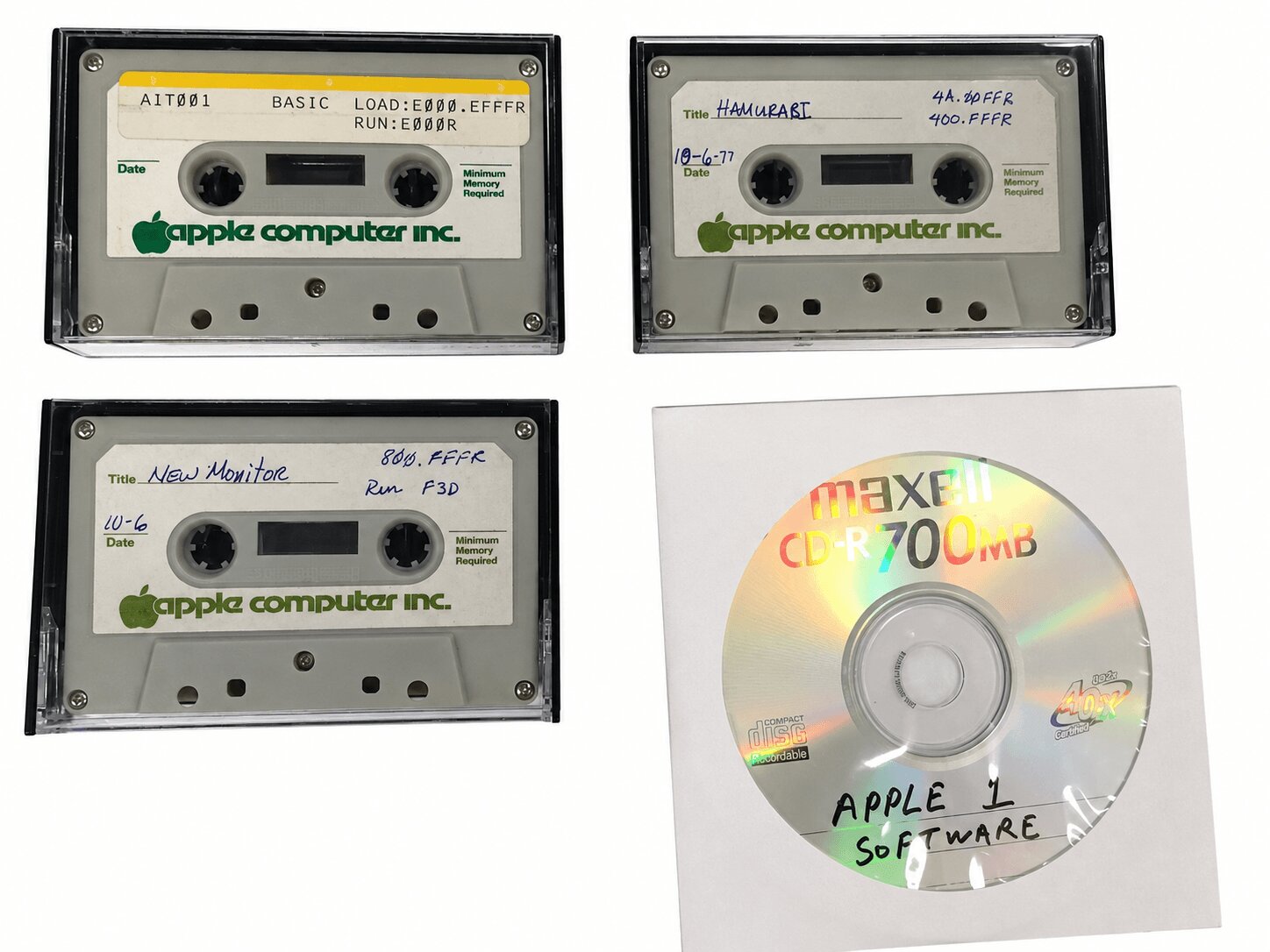

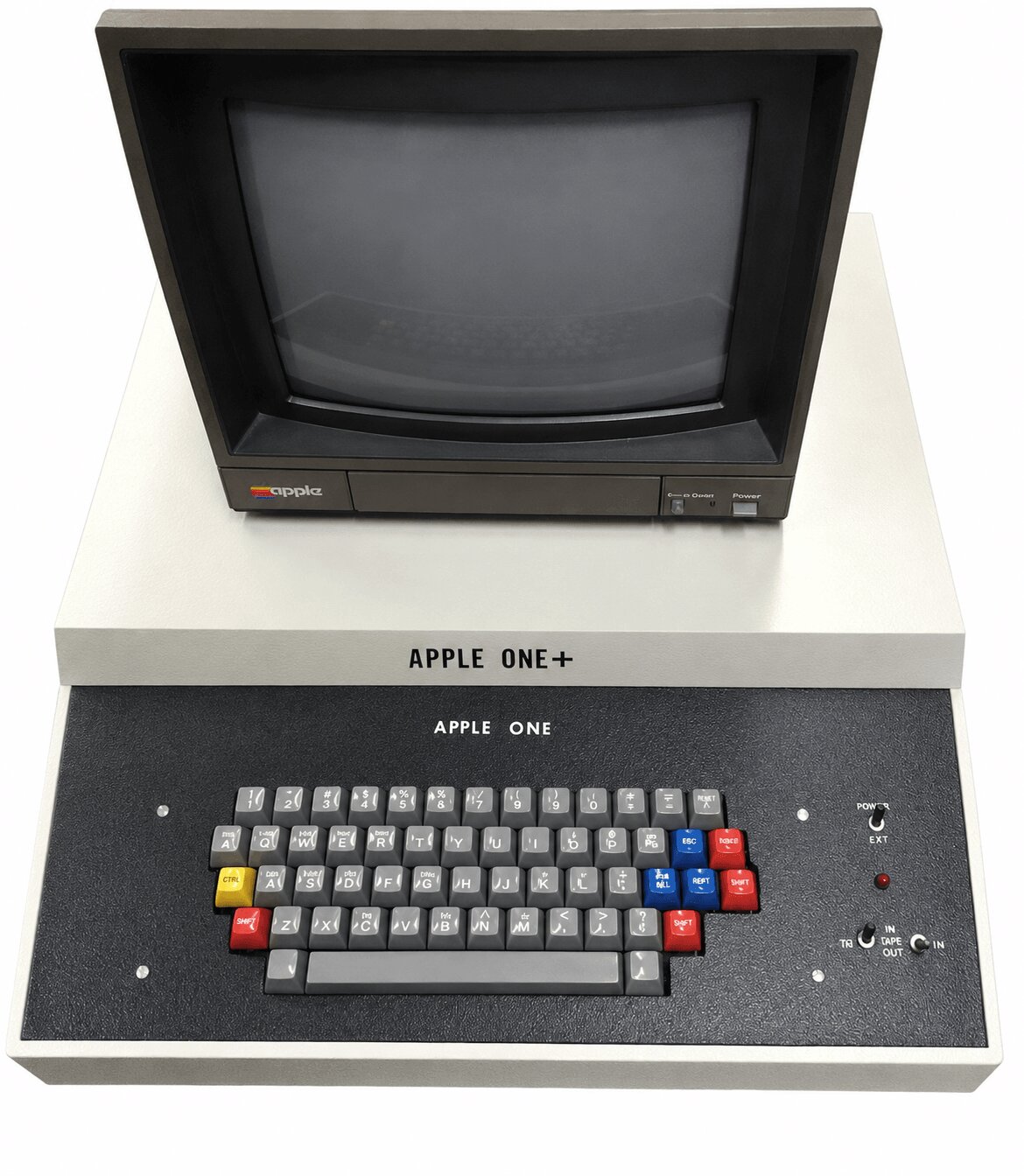

Custom metal case, 5 original manuals: Tan Preliminary Operation Manual, Tan Preliminary BASIC Manual, blue Preliminary BASIC Manual, white Operation Manual, Original Apple Cassette Interface, Postcard from Woz, 3 original Apple cassettes. Custom made expansion slot, custom EPROM card. Power Supply.

State

Joe Torzewski: "not all components comes original most are replaced with others".

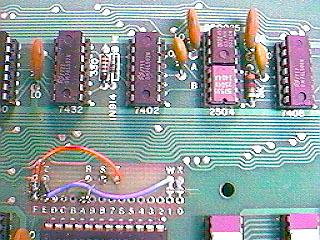

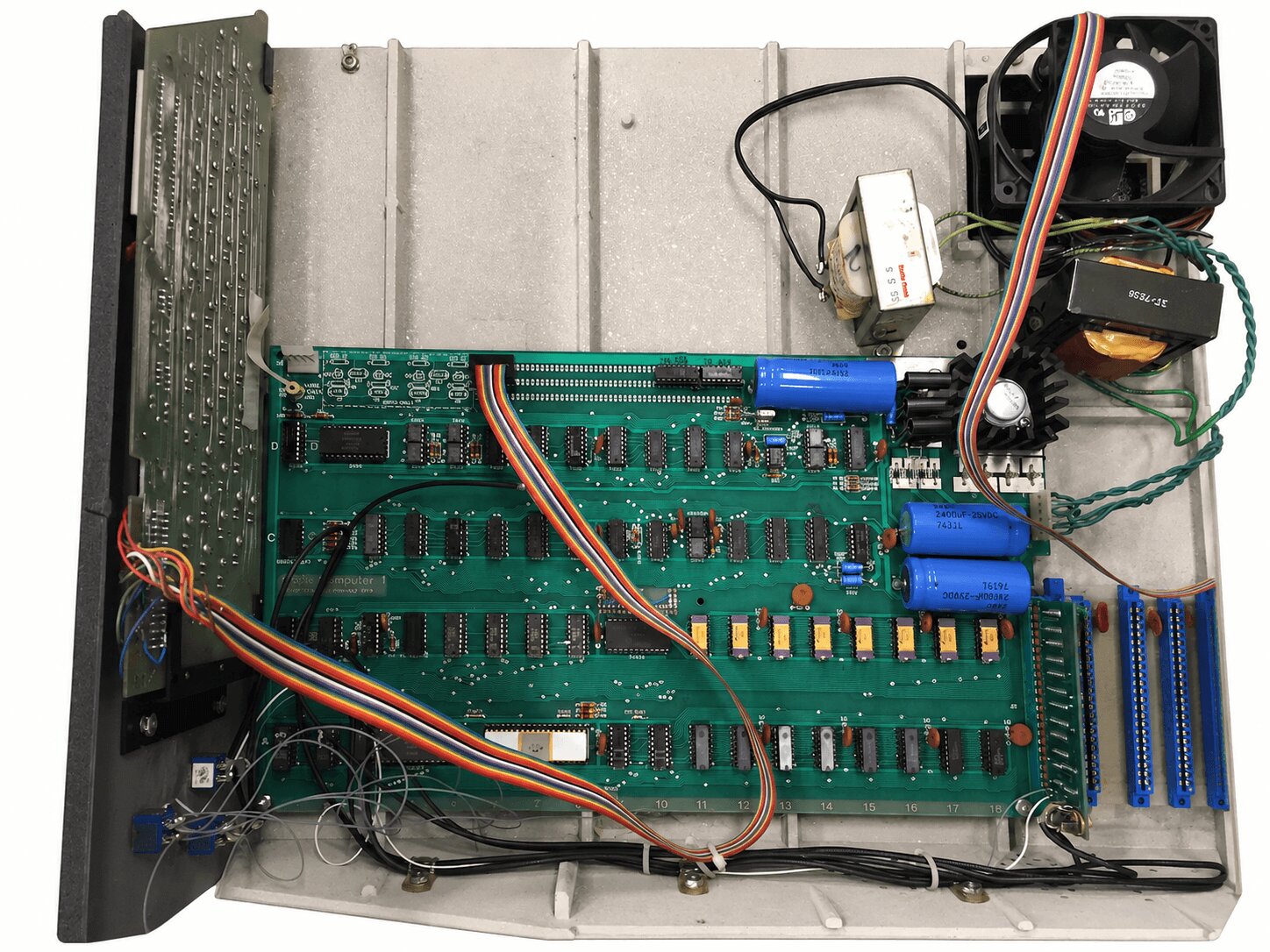

Most chips are National LS. Texas Instruments 74LS27. 2513 not original. Breadboard area 2 chips and keyboard connector added.

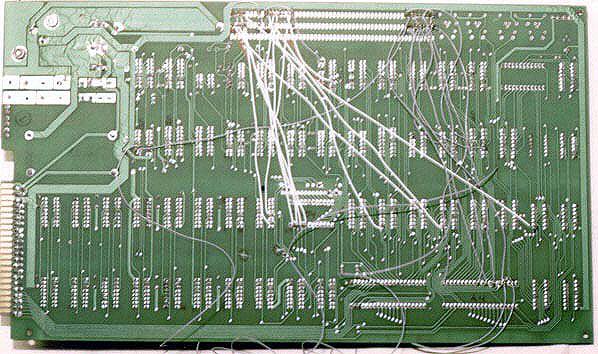

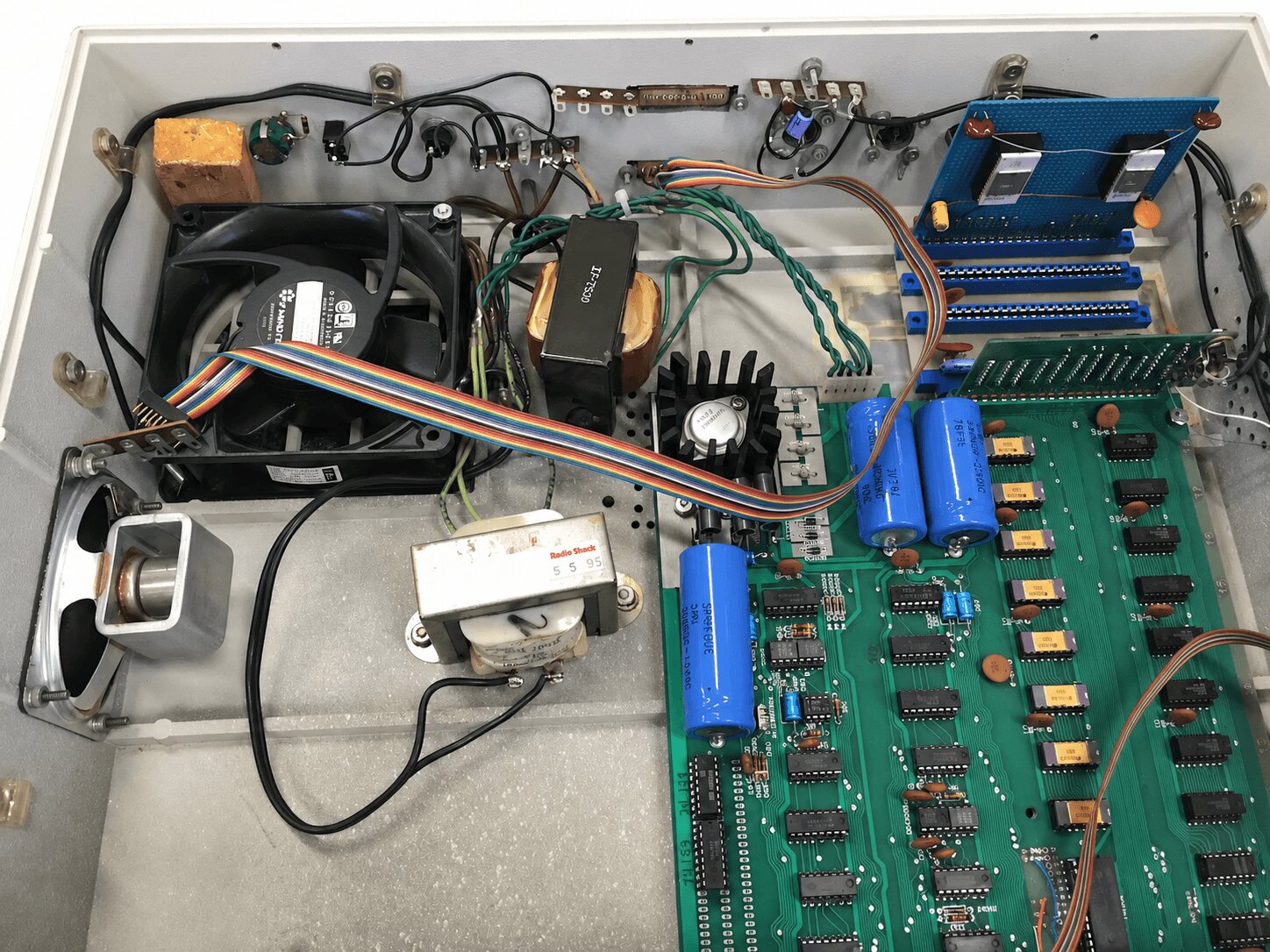

Many wires on the back added. Heat sink added to regulators. Handwritten numbers on the front by Torzewsky himself.

Stories

Joe Torzewski wrote about his Apple-1:
I bought my Apple 1 or as later named the Apple-I computer back in August 1977 and I still have my original Bill of Sale and Money Order Receipt for it. The board was selling for $666.66 retail at the time.

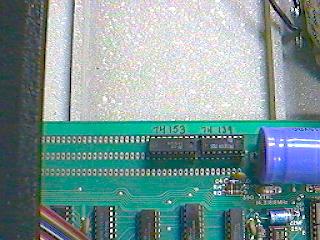

The Operating system was very small and limited. I build an EPROM board that plugged into an extension slot, that I added to the main board. I had two EPROM's on the card and a bigger and better monitor system. I wired wrapped the IC sockets.
The main board came with 4k of Ram with another 4k available for a total of 8k bytes of ram. Just think of it, most PC's today come with 64megs of Ram. To add 16k of ram you had to add two chips to the breadboard area for handling the reading and writing to the new 16k ram chips.
Plus you had to run a lot of wires, as you will see. I now had a whopping total of 20k of ram. To add 4k of ram cost and additional $120.00, retail.

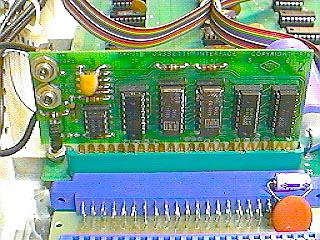

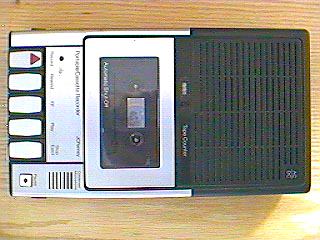

You used cassette tape to save your programs to tape and then load them back into the computer from your tape. The cassette Interface card plugged into the only slot on the motherboard. The speed of this board was up to 1500 bits per second or in 20 seconds you could read or write 4k bytes to or from a cassette tape. It was selling for $75.00 retail.
The Apple 1 computer could be set up to run a 6800 cpu instead of the 6502 cpu.
